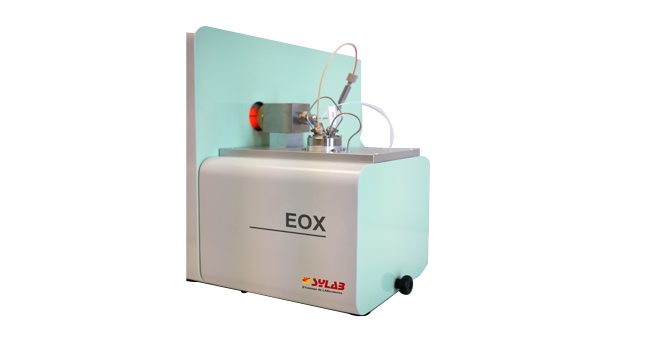

TOX/AOX/POX/EOX Analyzer

Overview of TOX/AOX/POX/EOX Analyzer

The TOX 4000 is a combustion analyzer designed for determination of organically bound halogens in solid and liquid samples. Most organic halogens are originated during utilization of different kind of solid and liquid materials and compounds which contain chlorine substances. Monitoring of these halogens is important to avoid contamination of environment.

Highlights

  • Flexible and modular design
  • Fast and precise measurement
  • Easy handling with simple operation
  • User friendly and intuitive software
  • High throughput by automation
  • Low maintenance and operation cost
  • Technical and analytical support

Specifications

Furnace temp Max. 1100 ┬░C
Power supply 230 V / 50 Hz, max.1100 W
Gas requirements Oxygen 99.6 % (Medical grade) (AOX, TX, EOX) Argon 99.996 % (EOX)
Software ENGINE LT ver 3.0, Windows 10
PC Windows® 10
Detector Microcoulometer with Ag indication electrode
Titration currents 2000, 200, 20 and 2 uA
Measuring range 0.02 - 300 ug Cl
Reproducibility 1.5 % CV
Dimensions 970 x 360 x 295 mm (W x D x H)
Weight 27 kg
